SEALED
INFLATABLE ARCH
AIRTIGHT ARCH
WITHOUT BLOWER

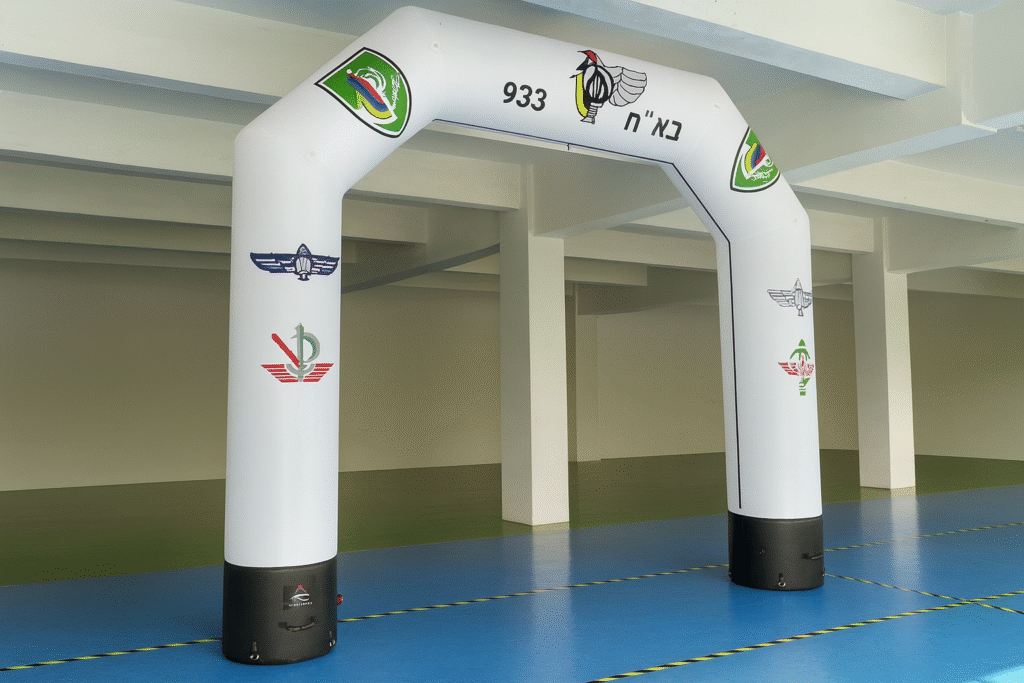

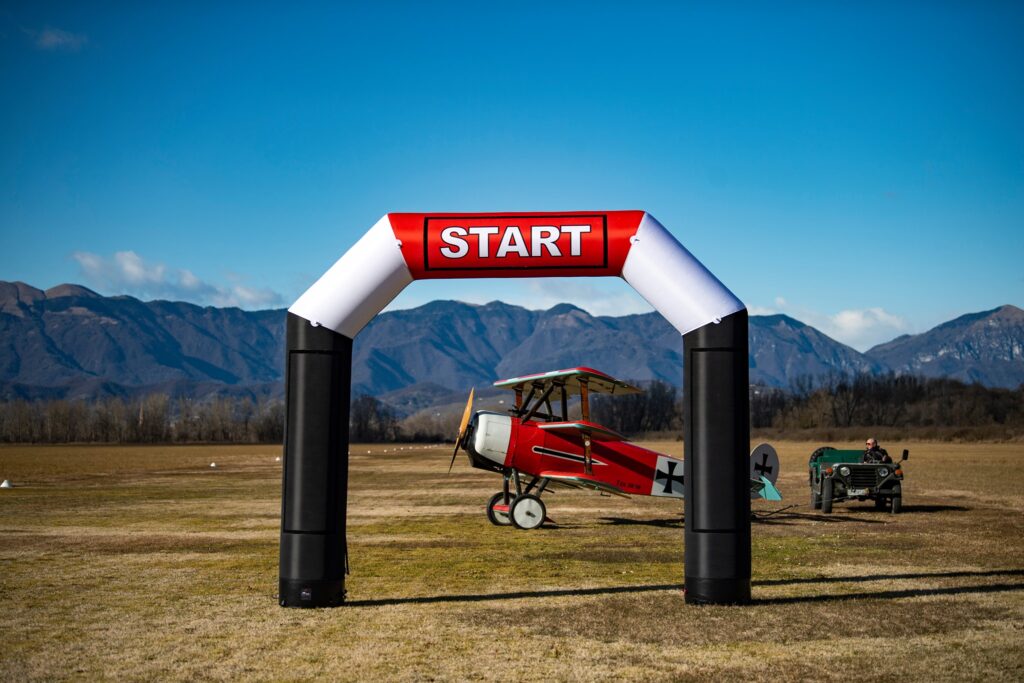

Sealed Inflatable Arch- Airtight, Elegant, Quiet & Blower-Free Design TThe Sealed Inflatable Arch (also known as airtight arch) features a
self-contained air structure that stays infated without the need for a continuous blower.Once inflated and sealed, it stands
independently, making it ideal for indoor and quiet environments.Sleek, stable, and easy to move – perfect for long-term branding.
Multiple Size And Shape Options
Flexible combinations to suit various event needs.

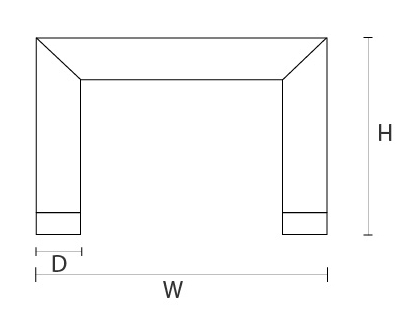

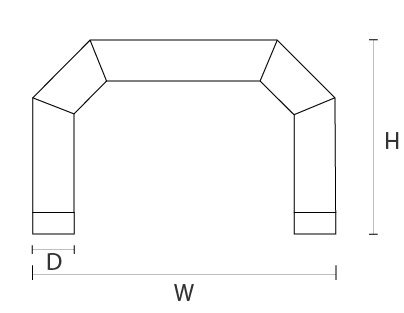

| Specification | Angled Air Sealed Arch-4m | Angled Air Sealed Arch-5m | Angled Air Sealed Arch-6m | Angled Air Sealed Arch-8m | Angled Air Sealed Arch-10m | Angled Air Sealed Arch-12m |
|---|---|---|---|---|---|---|
| W (m) | 4 | 5 | 6 | 8 | 10 | 12 |
| H (m) | 2.6 | 3.2 | 3.8 | 4.8 | 5.85 | 5.85 |
| D (m) | 0.45 | 0.6 | 0.6 | 0.8 | 0.9 | 0.9 |
| Arch. Weight (kg) | 18 | 25 | 27 | 40 | 56 | 57 |
| App. Packing (cm) | 55X47X47 | 76X65X34 | 76X65X34 | 81X81X25 | 95X95X35 | 100X100X41 |

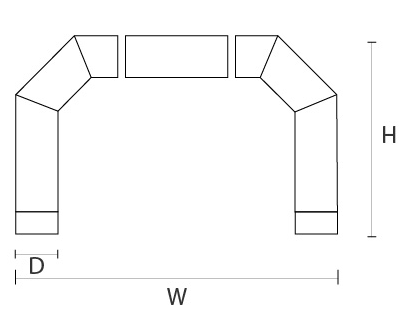

| Specification | Zip-off Sealed Arch-6m | Zip-off Sealed Arch-8m |
|---|---|---|
| W (m) | 6 | 8 |
| H (m) | 3.8 | 3.8 |
| D (m) | 0.8 | 0.8 |
| Arch Weight (kg) | 40 | 42 |
| App. Packing (cm) | 81X81X25 | 81X81X25 |
| App. Time (min) | 8 | 10 |
| Setup Person | 3 | 3 |

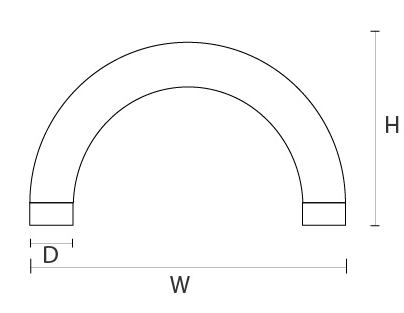

| Specification | Round Sealed Arch -5.5m | Round Sealed Arch -6.5m |
|---|---|---|
| W (m) | 5.5 | 6.5 |
| H (m) | 3 | 4.5 |
| D (m) | 0.6 | 0.5 |
| Arch Weight (kg) | 36 | 40 |
| App. Packing (cm) | 76X65X40 | 76X65X40 |
| App. Time (min) | 8 | 10 |
| Setup Person | 2 | 2 |

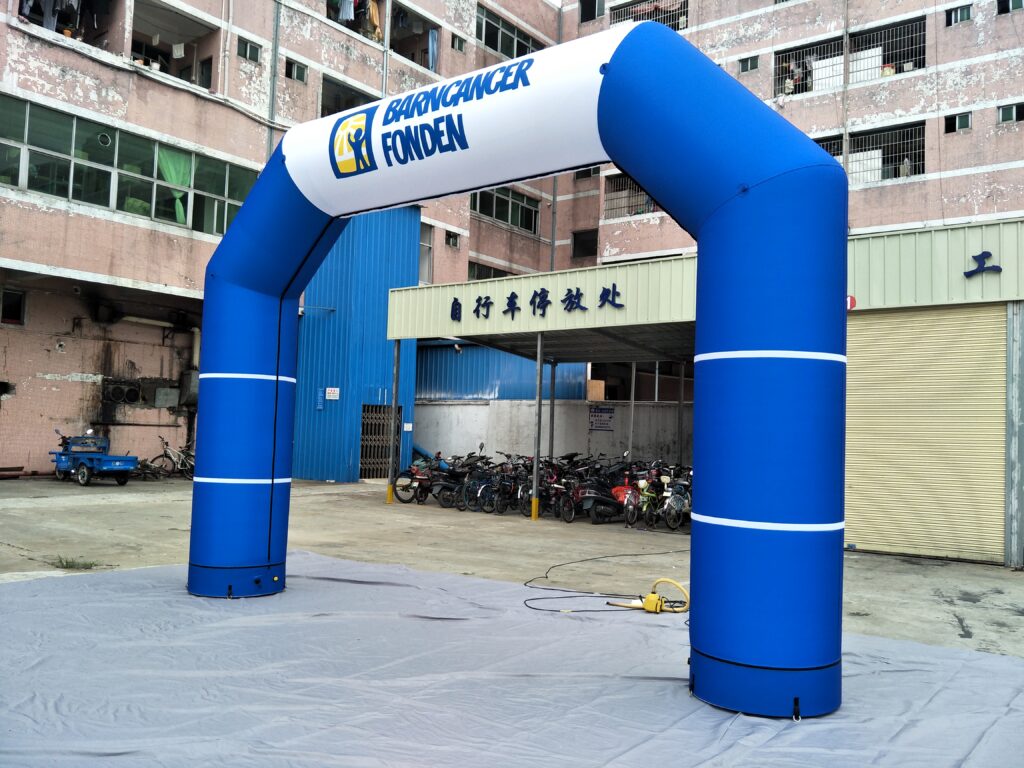

| Specification | Right Angled Sealed Arch-6m | Right Angled Sealed Arch-8m |
|---|---|---|
| W (m) | 6 | 8 |
| H (m) | 3.25 | 4.25 |
| D (m) | 0.6 | 0.8 |
| Arch Weight (kg) | 25 | 36 |
| App. Packing (cm) | 76X65X34 | 81X81X25 |
| App. Time (min) | 8 | 10 |
| Setup Person | 2 | 3 |

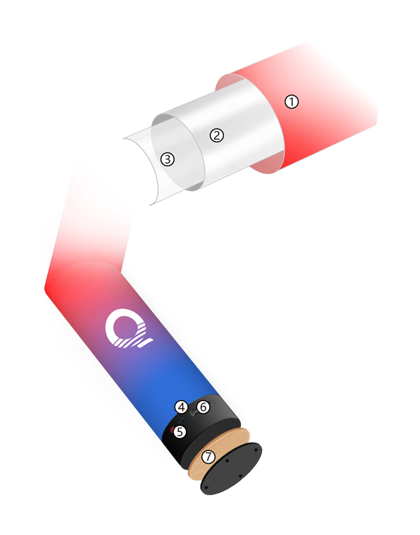

AIRTIGHT ARCH CONFIGURATION
1
Inflatable Arch Outer cover
2
PE Film
3
Inflatable TPU bladder
4
Zipper
5

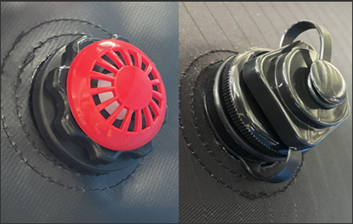

Over Pressure Valve
6
Inflation Valve
5
Weight MTF plate
KEY ADVANTAGES

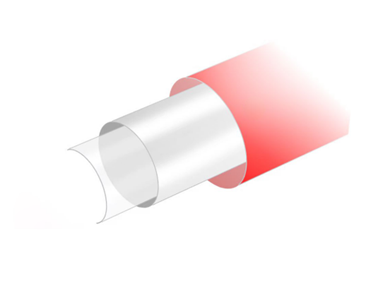

Triple-Layer Structure
Durable outer fabric +PE flm+TPU inner bladder for superior air retention-no need for continuous inflation.
360° Full Color Printing
Unlimited print area for bold and immersive brand display.

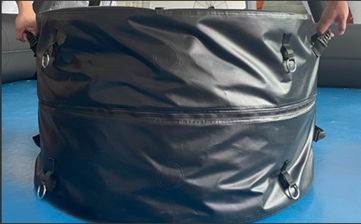

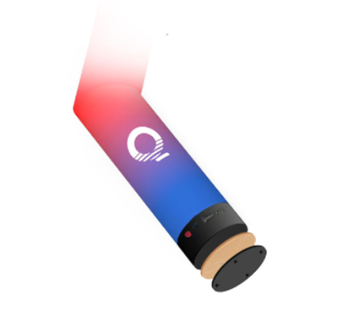

Weighted Base
Enhanced stability against wind-safer for outdoor USe.
Compact Design
Space-saving, ideal for tight event setups.
Modular Compatibility
Can be combined with infatable columns and tents for a unifed event setup.

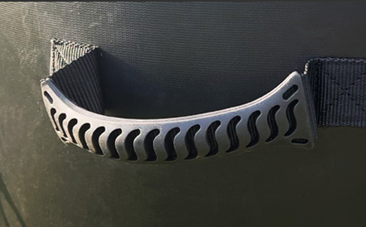

Easy to Pack & Carry
Zipper and handle system allows convenient trans-portation
Built-in Pressure Relief Valves
Safety valve that automatically releases excess pressure to ensure user safety.

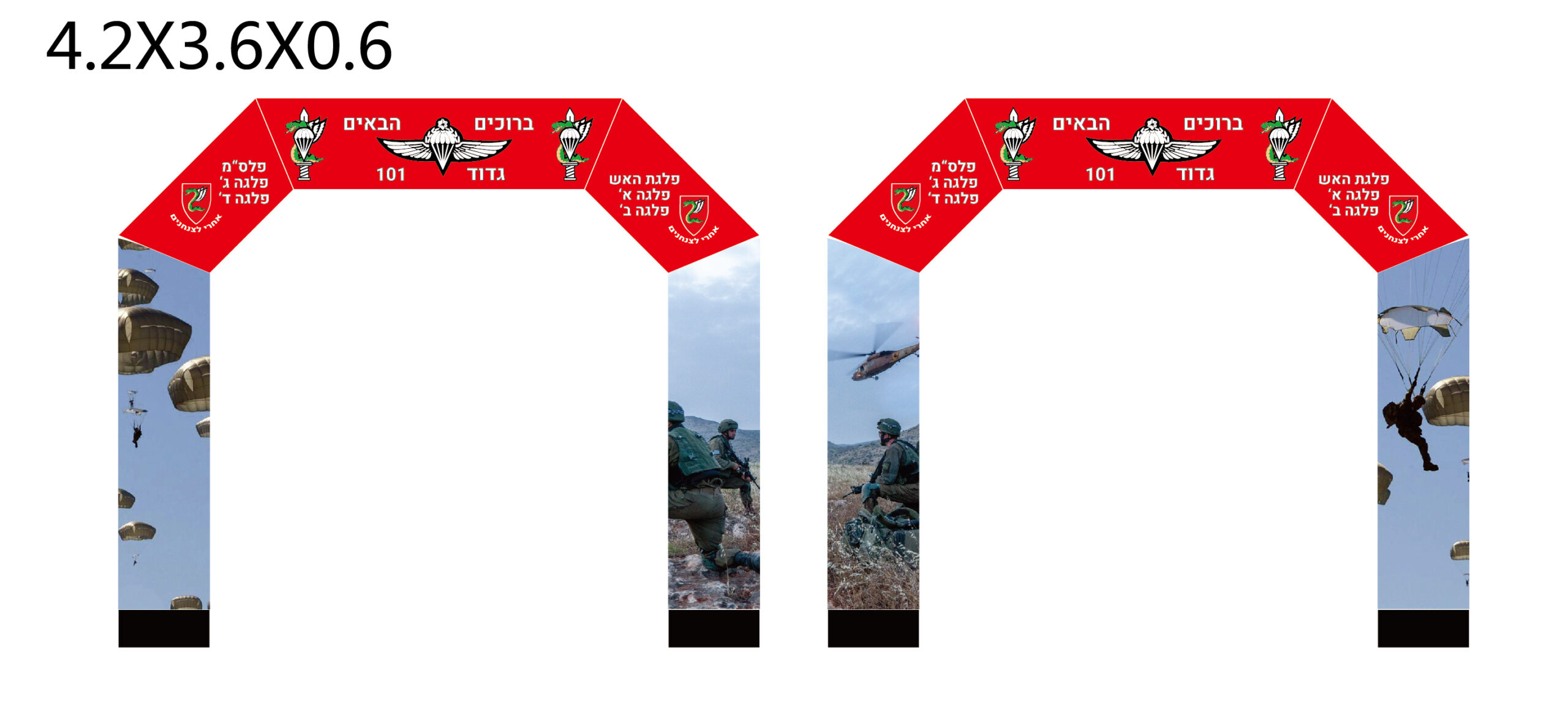

Free 2D Template or 3D Rendering !
Get our catalog
Download our catalog and learn more about REEQl products in detail!
FAQ
1.What materials are used to make a custom inflatable arch (airtight type)?
- A custom inflatable arch of the airtight type is made from high-quality TPU (Thermoplastic Polyurethane),PEflm,and durable 420D Oxford fabric. These materials ensure the arch is lightweight, strong, and long-lasting
2.Does an airtight custom inflatable arch require continuous inflation?
- No, it doesn’t.Thanks to itsTPU inner bladder,the arch only needs to be inflated once and can remain standing without a constant airflow.
3.Can customers choose the size of their custom inflatable arch?
- Yes, but due to the production limitations ofTPU inner bladders,we recommend a maximum diameter of 90cm.Our standard diameters are 45cm,60cm,and 90cm.

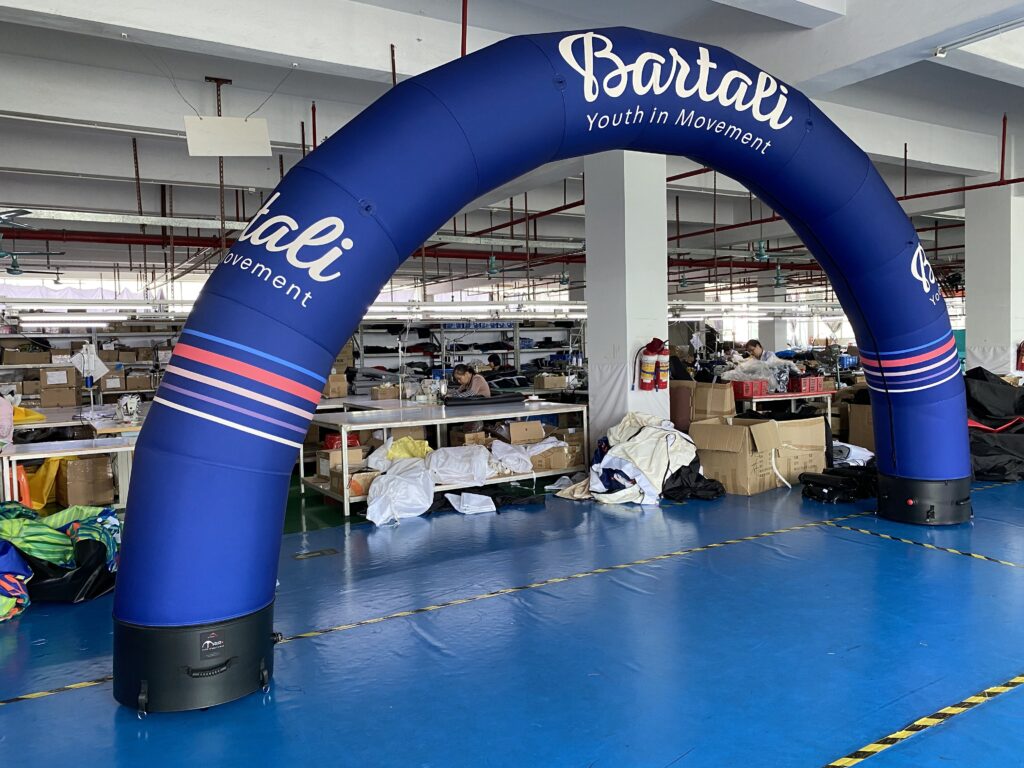

4.Why can an airtight inflatable arch stand by itself while a regular inflatable arch cannot?
- Airtight arches include weighted wooden blocks at the base for stability,whereas regular inflatable arches rely solely on fabric and a continuously running blower.
5.Can the inner bladder or outer cover of a custom inflatable arch be replaced?
- Yes, both the inner bladder and the outer fabric cover can be replaced.
6.Can customers choose the size of their advertising inflatable column?
- Simply open the zippers and detach the Velcro fasteners to remove or replace the components easily.
7.Can a custom inflatable arch have a banner added?
- Yes, but because the top of the airtight arch has a zipper,banners are typically attached to the left and right sides using Velcro.lfa top banner is required, it should avoid the center area.
8.Who should choose an airtight custom inflatable arch over a regular one?
- Airtight arches are ideal for events where silence is important,as they do not require noisy blowers. lf your venue needs a quiet atmosphere, the airtight custom inflatable arch is a perfect choice.
